Short Pitch Conveyor Chain with Attachments

Precision-engineered Short Pitch Conveyor Chain With Attachments designed for automated conveying, precise positioning, and fixture connection applications. Available in both carbon steel and stainless steel configurations, our attachment chains can be fully customized based on your conveyor design layout, product handling specifications, and installation dimensions.

Send Inquiry

PRODUCT INTRODUCTION

Reference Specification

Parameter	Specification
Product	Short Pitch Conveyor Chain With Attachments
Model	12A-K1 / L2
Chain Type	Short Pitch Conveyor Chain
Pitch	19.05 mm
Attachment Type	K1 / L2 (Custom configurations available)
Material Options	Carbon Steel / Stainless Steel
Manufacturing Standard	ANSI / ISO / DIN
Supply Type	Standard / OEM
MOQ (Listed Configuration)	100 meters (Flexible options available for R&D/Prototype projects)

Technical Configuration & Structure

Base Chain Assembly: Constructed from alternating inner link plates, outer link plates, pins, bushings, and rollers working in unified tension to ensure smooth force transmission.

Attachment Integration: Attachments are securely integrated into the outer or inner links (or both sides) to maintain symmetrical load distribution during continuous motion.

Link Interlock: Designed with precise clearance tolerances to accommodate sprockets smoothly without binding the attachment plates during engagement.

Material & Performance Comparison

Material Option Key Characteristics Recommended Application Environments
Carbon Steel High tensile strength, cost-effective, heat-treated for wear resistance. Standard indoor industrial assembly lines, dry material sorting hubs, regular lubrication environments.
Stainless Steel Superior corrosion resistance, hygienic properties, non-magnetic options available. Washdown areas, food processing plants, high-moisture environments, chemical packaging lines.

Built for Demanding Industrial Environments

Material Control: Sourced exclusively from certified mills with complete chemical composition verification reports.

Controlled Heat Treatment: Advanced atmospheric hardening applied to pins, bushings, and rollers to maximize wear resistance under continuous heavy loads.

Factory Pre-Lubrication & Pre-Stressing: Every chain undergoes factory pre-stressing to minimize initial elongation during the critical first weeks of operational line service.

Strict Quality Control (QC): Inspected using high-precision optical profile projectors, digital hardness testers, and tension test benches. (Factory inspection reports and traceable batch codes included with every shipment).

Attachment Options & Selection Guide

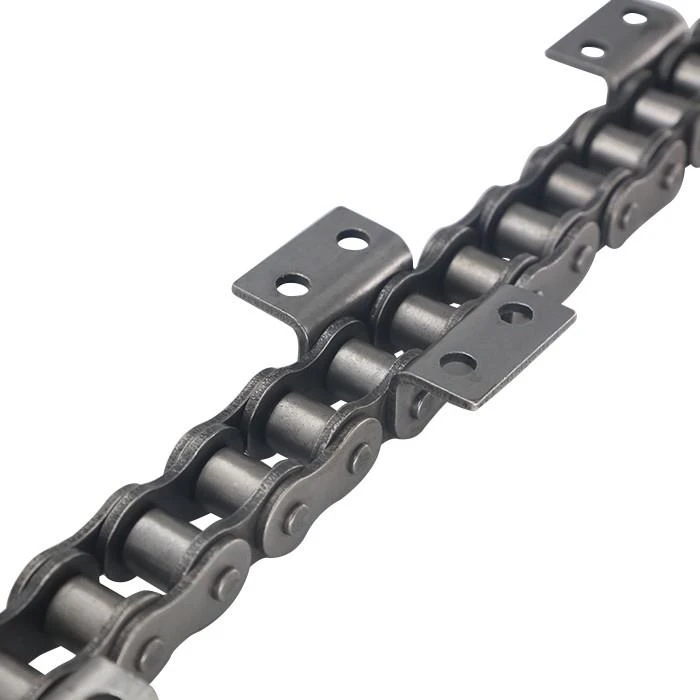

K1 / K2 Attachments: Features a bent plate with one (K1) or two (K2) mounting holes on one or both sides of the link. Used for bolting support trays, pushers, or specialized slats.

L1 / L2 Extended Pins: Incorporates extended pins protruding past the outer link plate. Used for mounting cross-rods, rotating rollers, or hanging modular baskets.

Custom Hole Spacing: If your mounting fixtures require non-standard hole diameters, custom pitch intervals, or offset bracket heights, manufacturing can be adapted directly from technical drawings.

Application & Working Conditions

Common Industry Sectors: Automated packaging machinery, food processing lines, electronics assembly conveyors, and logistics material sorting hubs.

Operational Considerations: Engineered for smooth articulation around sprockets to minimize chordal action and vibration during high-speed indexing.

Customization & Engineering Support Workflow

Drawing Review: Send your 2D/3D drawings (.DWG, .STEP, or PDF) or a physical sample link. Our technical team evaluates pin spacing and attachment hole tolerances within 24 hours.

Prototype Sampling: Small-batch sample production is available for physical fit-testing on your conveyor track prior to bulk volume commitment.

Batch Traceability: Every production run includes material test certificates (MTC) documenting raw material specs and hardness test results.

conveyor chain.webp

Company details:

公司组合

Delivery & parking :


FAQ

Q: What is your typical production lead time for bulk orders?

A: Standard production typically requires 20 to 35 days depending on total meter volume and custom attachment tooling requirements.

Q: Do you provide material test certificates with each shipment?

A: Yes. Every commercial batch includes factory material test reports documenting steel composition and hardness test metrics.

Q: Can you match attachment dimensions from an existing worn chain sample?

A: Yes. You can ship a physical sample or detailed dimension drawing, and our engineering desk will match the exact pitch and mounting hole layout.

Q: What packaging methods do you use to prevent transit damage?

A: Chains are securely coated with anti-rust oil, packed in sealed plastic bags, and placed in heavy-duty export wooden crates or corrugated boxes.

Q: Are connecting links and offset links included with the chain delivery?

A: Yes. Standard connecting links (spring clip or cotter pin style) are included based on your specified total strand length.

Q: What is the minimum order quantity for non-standard attachment configurations?

A: Custom attachment profiles involving non-standard hole spacing usually require a minimum order of 100 meters, though shorter test sample runs can be arranged upon request.

Q: Which payment terms do you accept for international B2B orders?

A: We accept standard international banking methods, including telegraphic transfer (T/T) and letter of credit (L/C) terms for qualified buyers
