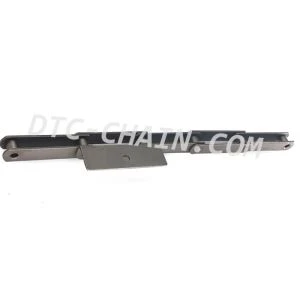

Conveyor Chains with Attachment

Conveyor Chains With Attachment are conveyor chains with extended plates or pins designed for connecting flights, pallets, and fixtures. They are available in ANSI, DIN, and ISO standard series with standard and customized attachment configurations.





Product Name	Standard double pitch conveyor roller chain C2082 with A1,A2 attachment
Size	ANSI series: C2042,C2052,C2062,C2082,C2102,C2122,C2162
	DIN/ISO series: C208A,C210AL,C212AL,C216AL,C220AL,C224AL,C232AL
Pitch	25.4mm-101.6mm
Material	A3 steel,40Mn,45Mn ,stainless steel(SS304,SS316)
Standard	ISO DIN GB ANSI
Length	Standard length 1.524M/box or 10 feet/box
Process	Heat Treatment,Carburization,Quenching. Parts ,Tempering,Black Oxide/Bluing





Item	Specification
Product Name	Conveyor Chains With Attachment
Chain Type	Double Pitch Conveyor Roller Chain / Conveyor Chain
Standard	ANSI / DIN / ISO / GB
Available Sizes	C2042, C2052, C2062, C2082, C2102, C2122, C2162, C208A, C210AL, C212AL, C216AL, C220AL, C224AL, C232AL
Pitch Range	25.4 mm - 101.6 mm
Material Options	Carbon Steel, 40Mn, 45Mn Alloy Steel, SS304 / SS316 Stainless Steel
Attachment Types	A1, A2 and Customized Attachments
Standard Length	1.524 m/box or 10 ft/box
Surface Treatment	Black Oxide / Bluing
Heat Treatment	Carburizing, Quenching, Tempering





Combine Harvesters: Compatible with major global and regional brands of grain, corn, and rice combine harvesters for feeder house drives, unloading augers, and elevator mechanisms.
Forage Harvesters: Suitable for driving crop processing units, gathering reels, and feed rolls facing heavy, continuous loads.
Tractors & Implements: Applicable for auxiliary power transmission on balers, seeders, cultivators, and other heavy-duty tillage equipment.

Environment Adaptability: Built to withstand high-dust, high-moisture, and high-vibration agricultural environments while maintaining reliable tensile strength and wear resistance.





Materials & Heat Treatment: The material selection and heat treatment process are controlled to ensure chain strength, wear resistance, and stable performance.
Material Selection: Carbon steel, alloy steel, and stainless steel are selected based on load requirements and operating conditions.
Component Materials: Plates, pins, bushings, rollers, and attachments use suitable materials for required mechanical properties.
Heat Treatment Process: Carburizing, quenching, and tempering improve hardness, toughness, and wear resistance.
Process Control: Material specifications and heat treatment parameters are monitored for consistent batch quality.





Tailored Engineering: Customized conveyor chains can be manufactured according to customer drawings, load requirements, installation space, and application conditions.
OEM & Design Services: OEM manufacturing is available for private labeling, special pitches, and customized attachment configurations.
Flexible Packaging: Standard industrial packaging includes chain, plastic bag, carton, and wooden cases, with fully customizable packaging options aligned with export and logistics requirements.





Raw Material Preparation: Steel materials are inspected before production to verify specifications and suitability.
Component Manufacturing: Chain plates, pins, bushings, rollers, and attachments are processed through stamping, machining, and forming with controlled dimensions.
Heat Treatment: Key components undergo carburizing, quenching, and tempering to improve hardness, strength, and wear resistance.
Assembly & Inspection: Components are assembled with precision control, followed by dimensional checks and performance inspections before shipment.







Standard Export Packaging: Multi-layer protection with plastic bags, cartons, wooden cases, and pallets. Customized packaging is available upon request.

Lead Time: Stock items ship within 3–10 days after inspection and packing. Custom orders follow production schedules.

Logistics & Freight: Reliable freight partners support worldwide delivery under FOB, CIF, EXW, and other shipping terms.
